Our factory, equipped with best technology and skilled machinists
is located in
a 14,000 sq ft facility in Coimbatore.
With our machining setup, we have the capability to execute all jobs in house with meticulous attention to detail. We always try to employ innovative and effective methods of machining, and have developed a wide range of products with consistent quality.
Machinery
|
Horizontal Machining Centre - 1 |
Horizontal Machining Centre - 2 |
Horizontal Machining Centre - 3 |
|
|
Make |
Hyundai - Wia |
Hyundai - Wia |

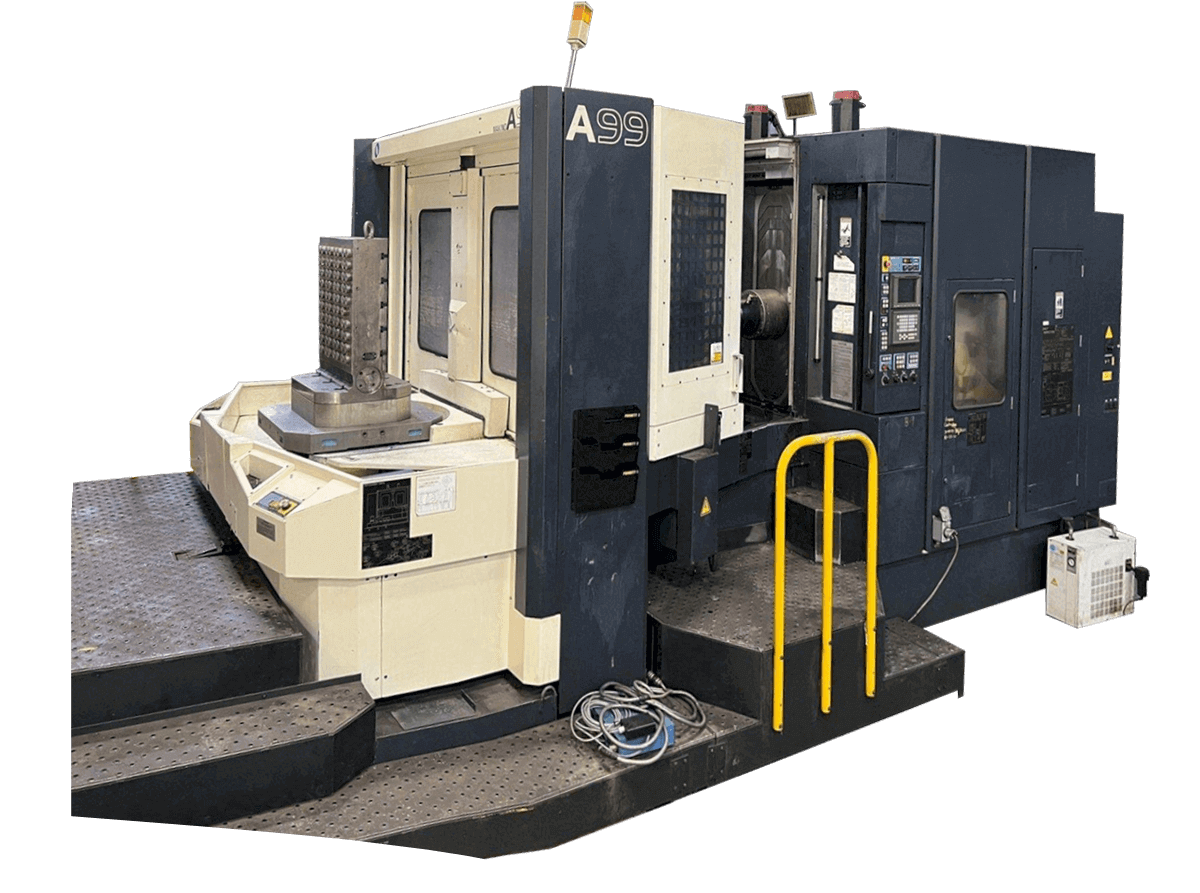

Makino |
|
Model |
KH 63G |
KH 63G |
A99 |
|
Year of Installation |
2012 |
2018 |
2023 (2000 model) |
|
Table Size |
630mm x 630mm |
630mm x 630mm |
800mm x 800mm |
|
Maximum Load Capacity |
1000 Kg |
1000 Kg |
1800 Kg |
|
Maximum Work piece Size |
D 1120mm x H 875mm |
D 1120mm x H 875mm |
D 1000mm x H 1200mm |
|
Maximum working size (X/Y/Z) |
950mm / 825mm / 760mm |
950mm / 825mm / 760mm |
1000mm / 1000mm / 950mm |
|
Minimum indexing angle |
1 deg |
1 deg |
0.001 |
|
Spindle RPM |
4500 |
4500 |
20 - 12000 |
|
Spindle Motor Output (Max / Cont) |
22 / 18.5 KW |
22 / 18.5 KW |
30 KW |
|
Slide Type |
Box Guideway |
Box Guideway |
Rotary table |
|
Tool Shank |
BT 50 |
BT 50 |
BT 50 |
|
Number of Tools |
40 |
60 |
40 |
|
Through Spindle Coolant Pressure |
30 bar |
70 bar |
60 bar |
|
Vertical Turret Lathe - 1 |
Vertical Turret Lathe - 2 |
Vertical Turret Lathe - 3 |
|
|
Make |
Hyundai - Wia |
Hyundai - Wia |

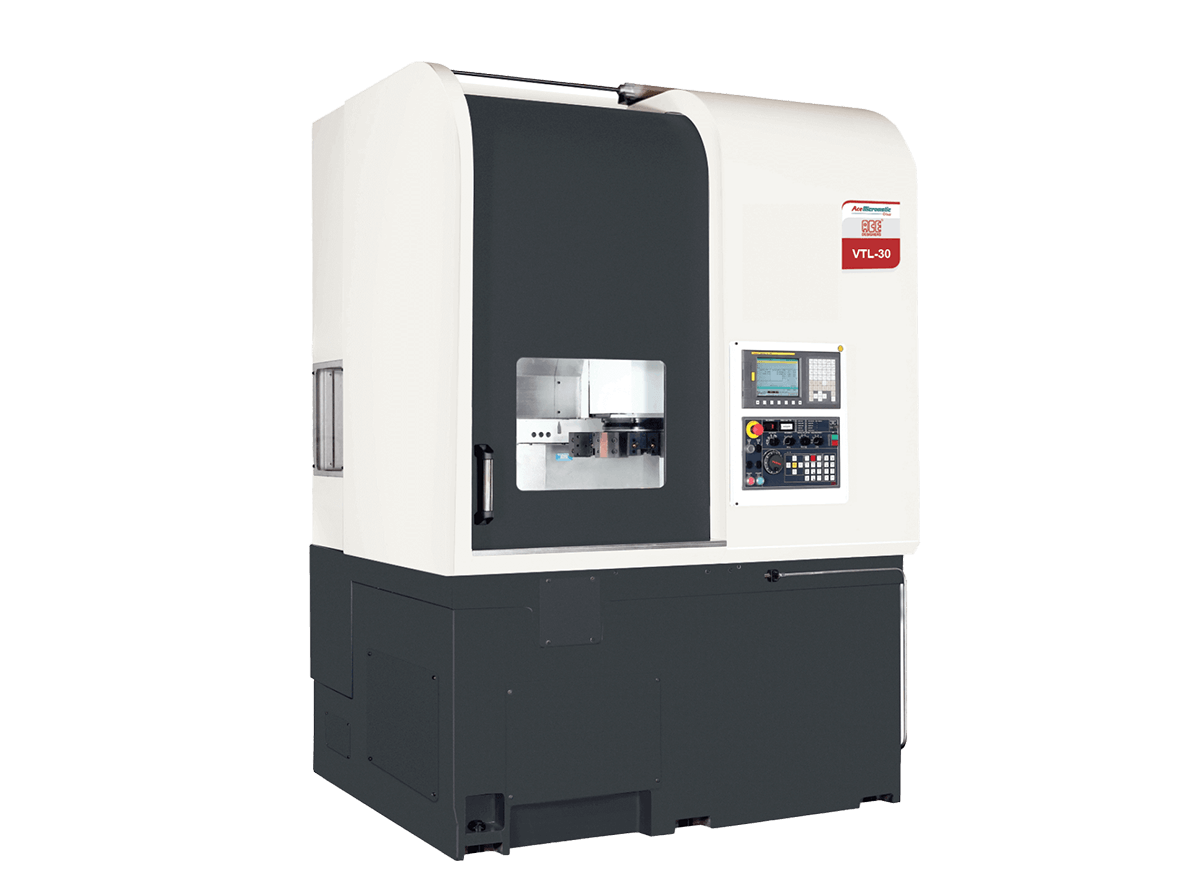

ACE Designers (ACE Micromatic Group) |
|
Model |
LV 800 |
LV 800 |
VTL 30 |
|
Year of Installation |
2012 |
2018 |
2022 |
|
Chuck Size |
18” |
24” |
16” |
|
Swing over the Bed |
Dia 890mm |
Dia 890mm |
Dia 800mm |
|
Swing over the Carriage |
Dia 710mm |
Dia 710mm |
Dia 240mm |
|
Maximum Turning Dia |
800mm |
800mm |
500mm |
|
Maximum Turning Length |
800mm |
1100mm |
700mm |
|
Motor Output (Max / Cont) |
30/22 KW |
30/22 KW |
22/18.5 KW |
|
Travel (X/Z) |
440mm/800mm |
440mm/1100mm |
265mm/700mm |
|
Vertical Machining Centre - 1 |
Vertical Machining Centre - 2 |
Vertical Machining Centre - 3 |
|
|
Make |
Hartford |
Jyoti |
BFW |
|
Model |
Omnis 1270 |
VMC 850 |
XTRON 1166 |
|
Year of Installation |
2014 (2007 Model machine) |
2016 |
2019 |
|
Table Size |
1370mm x 600mm |
1000mm x 530mm |
1300mm x 610mm |
|
Maximum Load Capacity |
500 Kg |
500 Kg |
1000 Kg |
|
Maximum working size (X/Y/Z) |
1270mm / 635mm / 635mm |
820mm / 510mm / 510mm |
1100mm / 600mm / 600mm |
|
Spindle RPM |
8000 |
6000 |
6000 |
|
Spindle Motor Output (Max / Cont) |
11 / 15 kW |
7.5 / 11 kW |
11 / 15 kW |
|
Tool Shank |
BT 40 |
BT 40 |
BT 40 |
|
Through Spindle Coolant Pressure |
20 bar |
20 bar |
16 bar |
|
Rotary Table (If Available) |
Not Available |
UCam 250 Dia |
UCam 320 Dia |
|
Horizontal Turning Centre- 1 |
Horizontal Turning Centre - 2 |
|
|
Make |
Moriseiki |
Hyundai - Wia |
|
Model |
SL4 |
L280 |
|
Year of Installation |
2014 (1988 Model, Refurbished) |
2016 |
|
Chuck Size |
315mm |
320mm |
|
Swing over the Bed |
Dia 600mm |
Dia 590mm |
|
Maximum Turning Dia |
420mm |
410mm |
|
Maximum Turning Length |
600mm |
720mm |
|
Motor Output (Max / Cont) |
22/18.5 kW |
22/18.5 kW |
|
Travel (X/Z) |
230mm/600mm |
220mm/750mm |

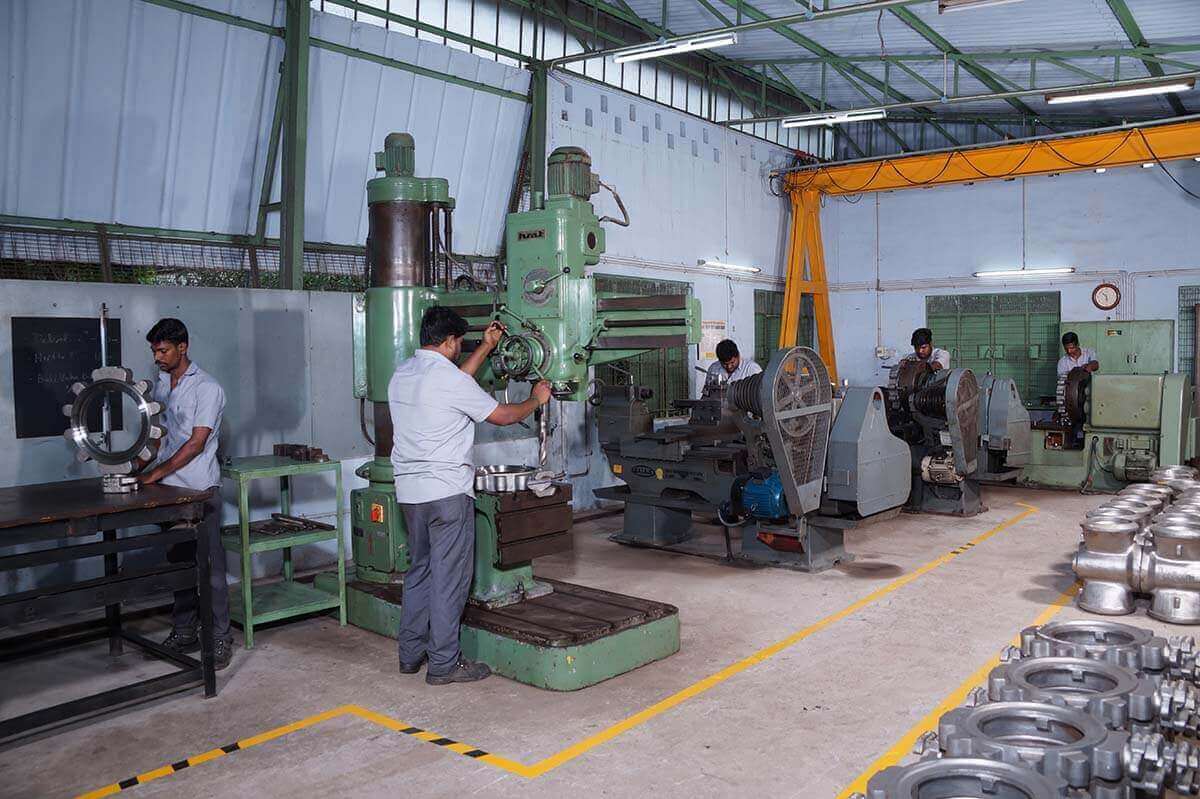

Radial Drilling Machine – HMT RM 62 - 1 No.
|
Drilling Capacity |
50mm |
|
Maximum drilling radius |
1500mm |
|
Minimum drilling radius |
530mm |
|
Base plate to spindle |
Max.1420mm / Min.355mm |
|
Spindle taper |
MT5 |
Conventional Lathe - Bombay Kriloskar Lathe – 1 No.
|
Chuck diameter |
600mm |
|
Centre height |
300mm |
|
Centre height (cut bed) |
550mm for 590mm length |
Conventional Lathe – 2 Nos.
|
Chuck diameter |
600mm |
|
Centre height |
400mm |
Radial Drilling Machine – Batliboi BVR 3 - 1 No.
|
Drilling Capacity |
25mm |
|
Maximum drilling radius |
930mm |
|
Vertical power movement of arm |
520mm |
|
Horizontal power movement of head |
590mm |
|
Spindle taper |
MT4 |
Manual & Semi Automated Welding
Our highly skilled and experienced welding technicians are ‘multi-coded’ enabling them to work with a wide variety of products.
Employing the latest equipment, materials and methods, all work is undertaken to comply with the latest standards. In addition to performing new welds and claddings, we use our unrivalled knowledge and experience to repair, modify and upgrade engineering components, particularly valves of all types and sizes.
We have a large stock of corrosion/wear resistant welding and cladding components incorporating ferrous and non-ferrous materials.

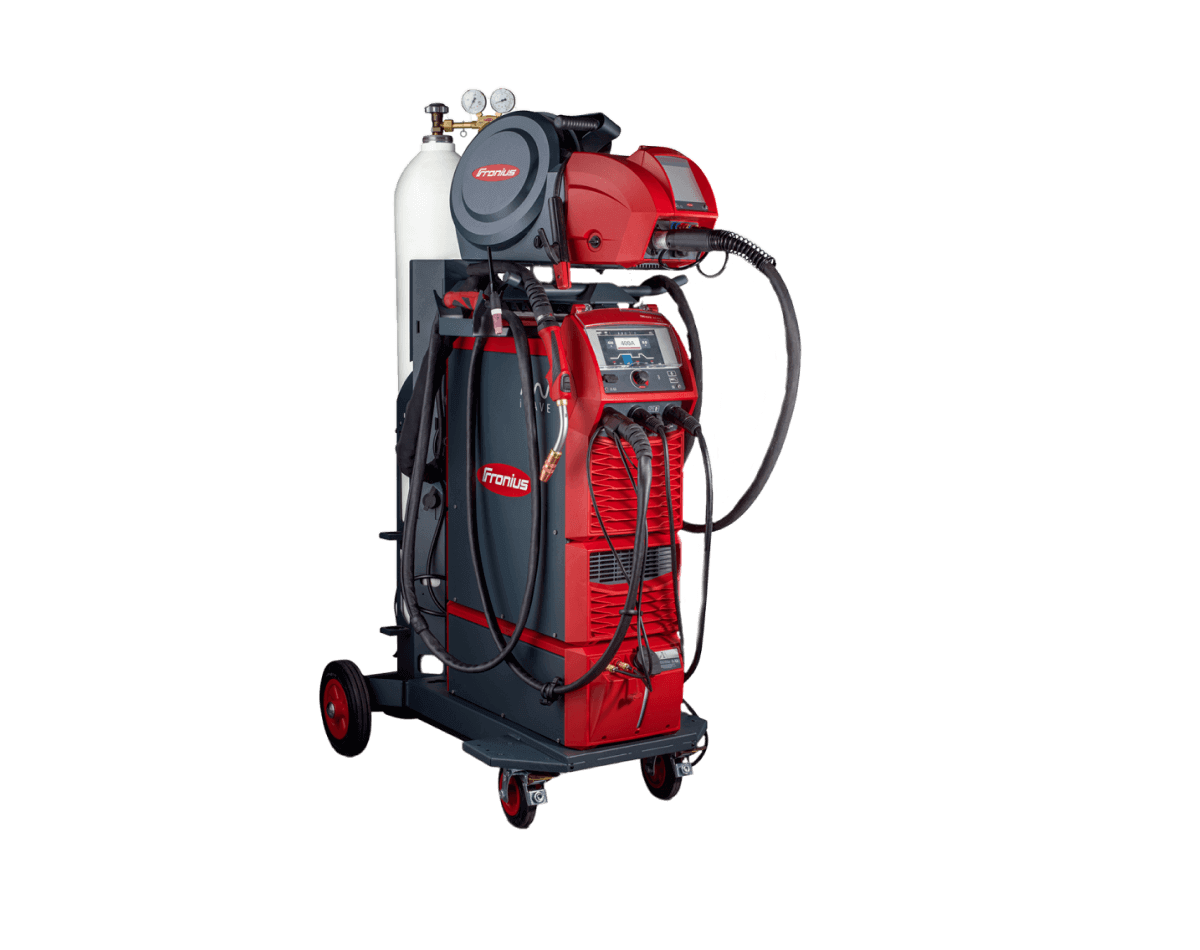

| Make | Fronius |
| Model | TransSteel 4000 pulse |
| Year of Installation | 2022 |
| Open Circuit Voltage | 65 V |
| Welding current min. | 10 A |
| Welding current max. | 400 A |
| Welding current / Duty
cycle [10min/40°C] |
400 A / 40 % |
| Welding current / Duty
cycle [10min/40°C] |
370 A / 60 % |
| Welding current / Duty
cycle [10min/40°C] |
340 A / 100 % |
| Degree of protection | IP23 |
Quality

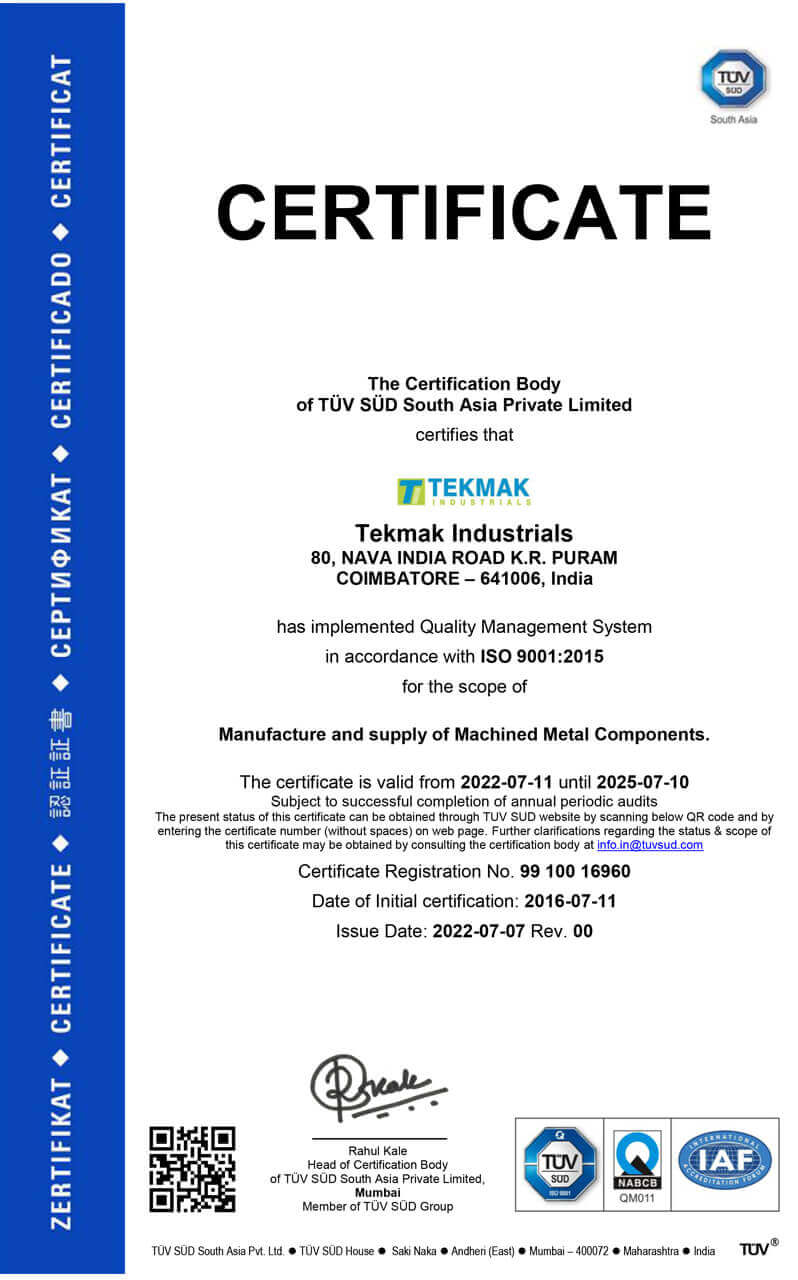

Tekmak adopts and follows the best practices in the industry, and is ISO 9001:2015 certified. Tekmak has always stood for quality products and services at competitive costs. To support our machines we have the best instruments and a qualified team that ensures dimensional accuracy.
| S.NO | INSTRUMENTS | MAKE | RANGE |

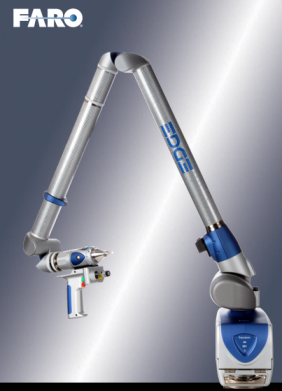

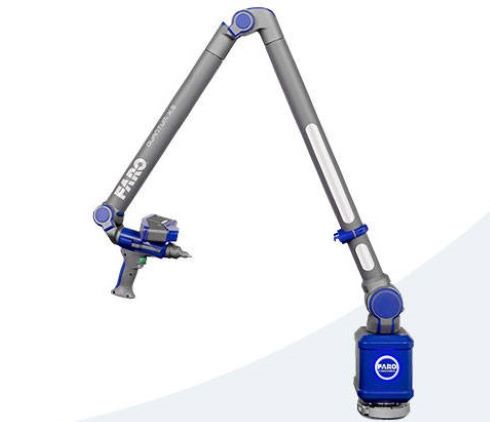

| 1 | FARO ARM | FARO | 6 FEET |

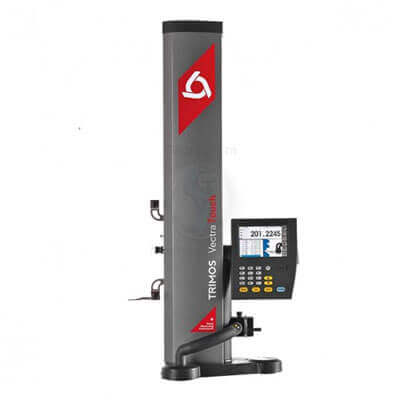

| 2 | TRIMASTER | TRIMOS | 0-600mm |
| 3 | SLIP GAUGE | MITUTOYO | 1-100mm |
| 4 | ROUGHNESS SURFACE METER (SJ210) WITH DEEP GROOVE DETECTOR | MITUTOYO | MULTI |
| 5 | DIGITAL DEPTH VERNIER CALLIPER | MITUTOYO | 0-600mm |
| 6 | ADJUSTABLE MICROMETER | MITUTOYO | 300-400mm |
** All other standard instruments and thread plug gauges are available as per requirement. A detailed list can be provided on request.**
